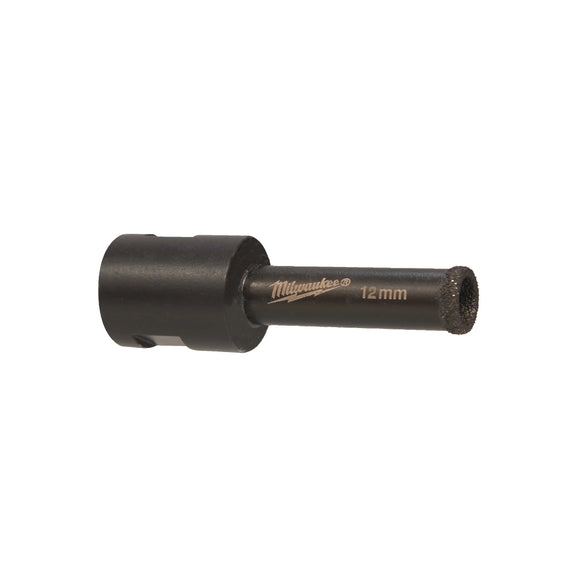

The Milwaukee M14 Diamond Max Tile Drill Bit 12 mm (4932471762) is designed for dry drilling into ultra‑hard surfaces such as porcelain, gres, quarry tiles, marble, stone, cast iron, and fiberglass. It features a premium diamond bond and a tough alloy body that resists bending under load, delivering long life and excellent performance. The M14 thread allows direct mounting onto angle grinders or via adapters to polishers or straight grinders. It produces clean, precise holes without scratching the edges and includes multiple slots for easy removal of the core (slug).
Specifications are based on product listings.
Features & Specifications
-
Model / SKU: 4932471762
-
Type: Diamond tile drill bit (dry use)
-
Diameter: 12 mm
-
Mounting Thread: M14
-
Total Length: 68 mm
-
Working Length: 35 mm
-
Bond / Cutting Material: Premium diamond bond
-
Body Material: Tough alloy resisting bending under stress
-
Operating Mode: Dry drilling (no cooling or water required)
-
Suitable Materials: Porcelain, gres, quarry tiles, marble, stone, cast iron, fiberglass
-
Hole Quality: Produces clean, precise holes without peripheral scratches
-
Slug / Core Removal: Multiple access slots for easy core removal
-
Quantity in Package: 1 piece
