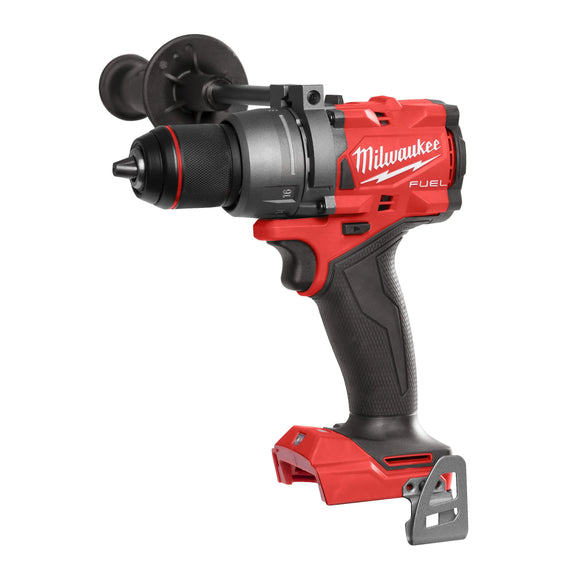

M18 FUEL percussion drill M18 FPD3-0

The MILW Gen 4 M18 FPD3‑0 percussion (hammer) drill is a professional cordless tool offering high torque, compact size, brushless motor efficiency, and smart safety features. Designed for demanding drilling in masonry, concrete, metal, and wood, it balances performance, reliability, and ergonomics.

Features & Specifications

• Maximum torque: 158 Nm

• Very compact length: 175 mm for access in tight spaces

• AUTOSTOP™ control mode: protects against over-rotation in binding situations

• 13 mm metal chuck for rapid bit changes and secure retention

• High drilling and driving performance even under load

• Integrated bright LED work light

• Fuel gauge displays remaining battery charge

• Reversible metal belt clip for convenient tool hanging

• Individual battery cell monitoring to optimize runtime and pack longevity

• Compatible with all Milwaukee M18 battery packs

• Brushless POWERSTATE™ motor with REDLINK PLUS™ electronics

• Modes supported: drilling, hammer/percussion + drilling, screw driving

• Chuck capacity: 13 mm

• Max drilling capacities: masonry ~16 mm, steel ~16 mm, wood ~89 mm

• Percussion rate (blows per minute): up to about 33,000 bpm

• No‑load speeds:

  • Gear 1: 0 – ~500 rpm

  • Gear 2: 0 – ~2,100 rpm

• Battery voltage: 18 V
